Industrial Screen Supply, serving Eau Claire, WI, has been a trusted sand and gravel screen supplier since 1992. Call 651-699-3715 today to get a quote or speak with a screening specialist.

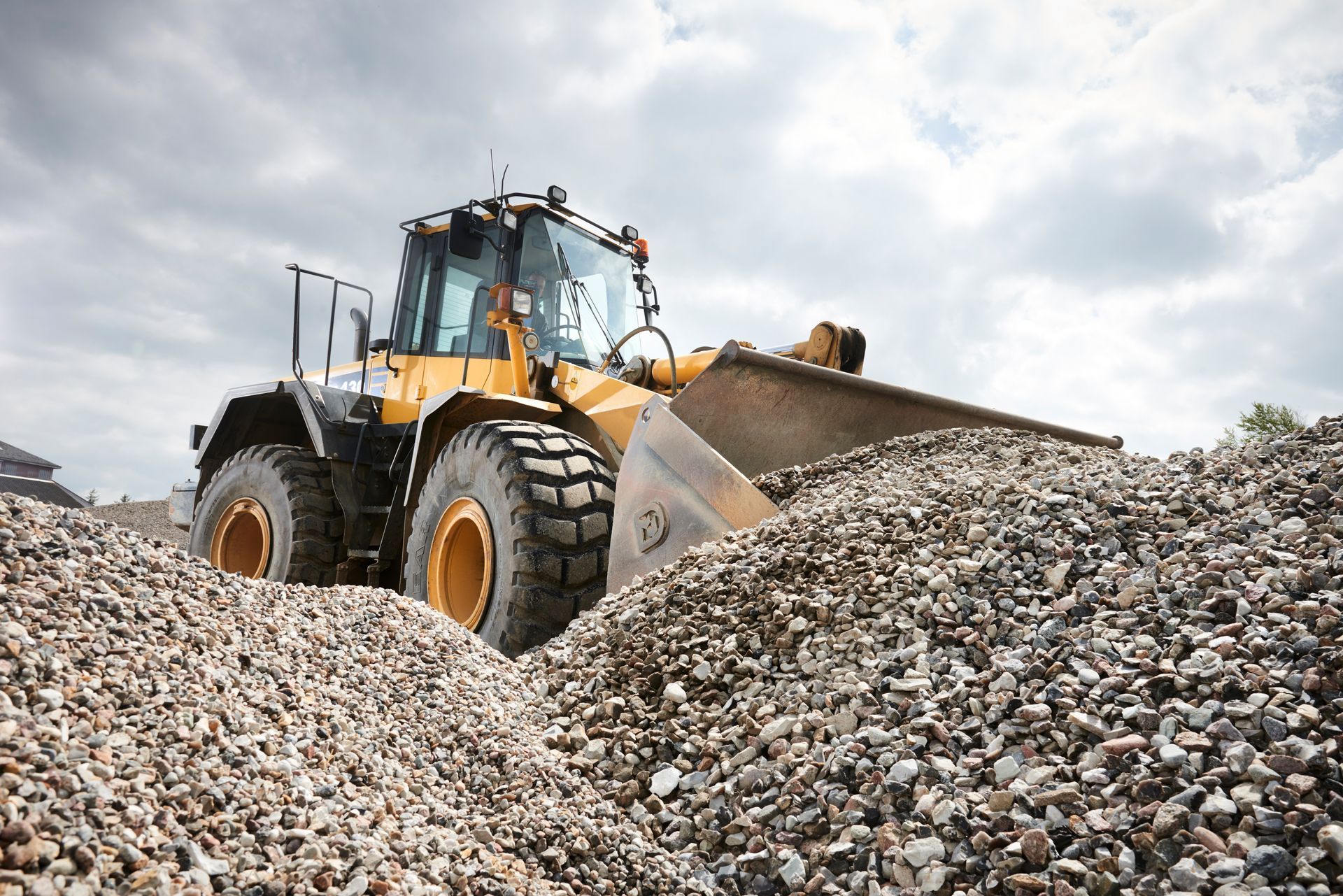

Professional sand and gravel screen supplier handling aggregate materials with wheel loader.

Screen Media Built for Sand and Gravel Operations

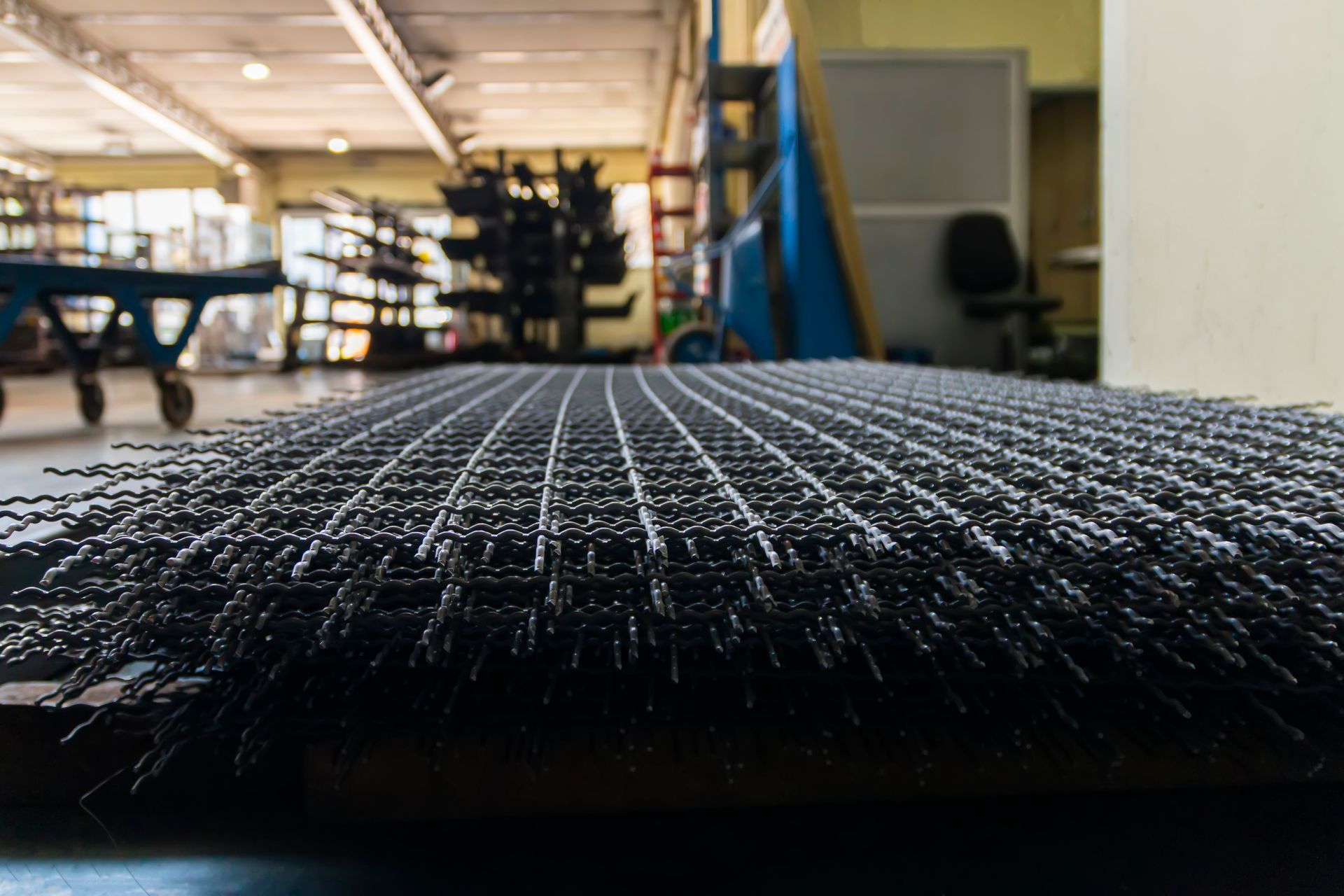

Industrial Screen Supply offers woven wire cloth, stainless steel mesh, and high-carbon steel screens purpose-built for aggregate separation. Sand and gravel operations in the Eau Claire, WI, area and across western Wisconsin and the Upper Midwest demand screen media that holds up under constant vibration, abrasive material, and variable moisture. As a sand and gravel screen supplier serving Eau Claire, WI, Industrial Screen Supply carries a broad inventory of screen types and materials ready to match your exact process requirements.

Screen Media Options

Choosing the right media type is the first step to reliable separation performance. Industrial Screen Supply can supply options including woven wire cloth for precision sizing, polyurethane panels for high-wear or wet applications, and rubber screen media where impact absorption is a priority. Each media type suits different feed conditions, tonnage rates, and particle characteristics.

Material Selections for Aggregate Use

Material grade directly affects service life in abrasive aggregate environments. Available options include high-carbon hard-drawn steel, which is commonly used in gravel, sand, and stone sizing applications. Stainless steel grades such as Types 304 and 316 offer corrosion resistance where moisture or washing cycles are involved. Low-carbon steel works well for lighter-duty or fabricating applications. View the full materials guide to compare wire grades and weave types.

What Are the Right Mesh Sizes for Sand vs. Gravel Separation?

Mesh size selection depends on your target cut points and the gradation of your feed material. As a general guide, coarse gravel separation may call for openings in the 1-inch to 3-inch range, while mid-range crushed stone typically uses 3/8-inch to 3/4-inch apertures. Fine sand sizing often requires openings from 10 mesh down to 30 mesh or finer. Industrial Screen Supply can help you match opening size, wire diameter, and weave pattern to your vibrating screen deck and production targets.

Solving Blinding and Pegging Problems

Blinding and pegging can reduce throughput and force unplanned shutdowns. Blinding occurs when fine, moist material builds up across screen openings, cutting off material flow. Pegging happens when near-size particles wedge into the apertures and stay locked in place. Both problems are common in Upper Midwest aggregate operations, where spring runoff and humid summers can raise feed moisture levels. Selecting the right media, such as polyurethane or rubber panels with self-relieving geometry, can significantly reduce both issues. Industrial Screen Supply can help identify the media type most likely to address your specific blinding or pegging conditions.

How to Order Replacement Screens

Getting the right replacement screen quickly reduces downtime. Here is a simple process:

  1. Measure your existing screen panel dimensions and opening size.
  2. Note your current material and wire diameter if possible.
  3. Identify your feed material type, moisture level, and estimated tonnage.
  4. Contact Industrial Screen Supply with those specs for a match or recommendation.
  5. Receive your order, often with same-day processing on standard woven wire cloth products.

Why Choose a Regional Sand and Gravel Screen Supplier over a National Catalog?

Regional availability can make a real difference when a screen fails mid-shift. Industrial Screen Supply has served aggregate, mining, and industrial operations from Saint Paul to Eau Claire since 1992, and offers faster turnaround than many national suppliers. Custom sizing, cutting, and edge finishing are available to reduce on-site modification time. A specialist can review your screen dimensions and application before your order ships, helping prevent costly mismatches. Explore the full product range at industrialscreensupply.com/products.

Get Your Sand and Gravel Screens Faster

Industrial Screen Supply is ready to help operations in Eau Claire, WI, and surrounding communities find the right screen media at the right mesh. When you need a reliable sand and gravel screen supplier with fast turnaround and custom sizing options, Industrial Screen Supply is the regional source built for this work. Whether you are replacing worn panels or configuring a new deck, working with an experienced sand and gravel screen supplier means fewer delays and better-matched media from the start. Call 651-699-3715 or email info@industrialscreensupply.com to request a quote, discuss custom sizing, or get guidance from a screening specialist.
